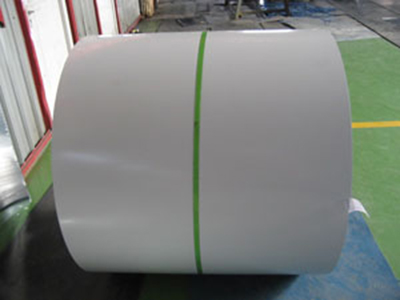

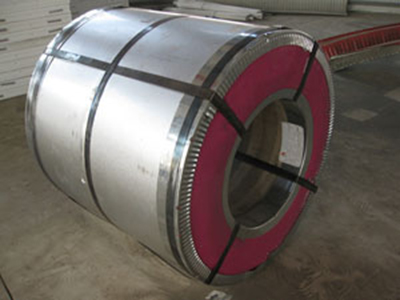

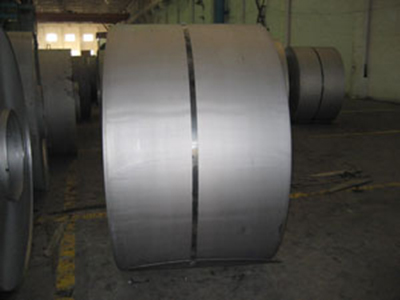

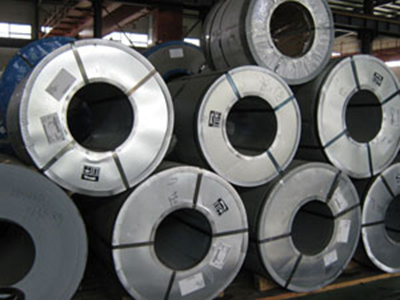

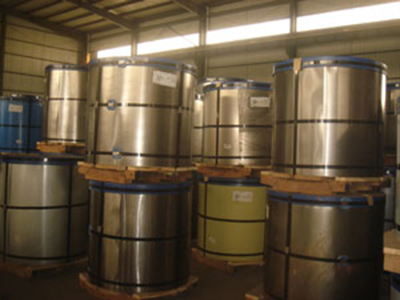

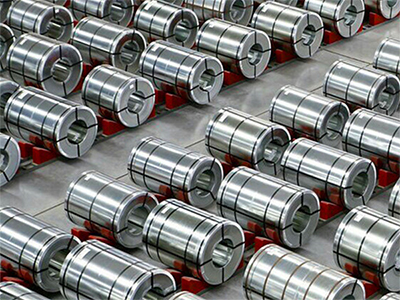

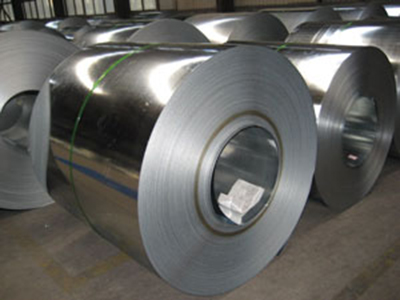

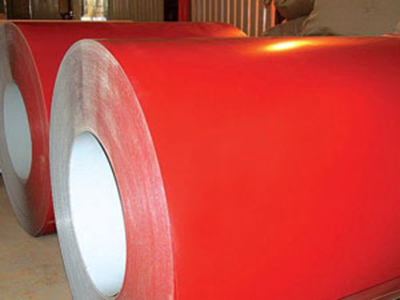

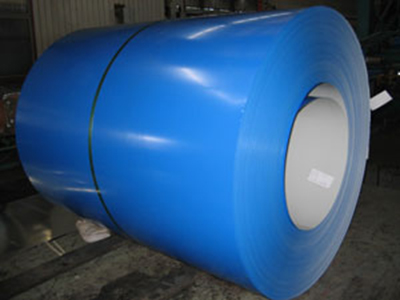

Color Coated Steel
Color coated steel is a kind of material produced by compounding steel and color coating. It comes with high chemical stability and high anti-rust capability. Color coated steel has many benefits associated with steel, such as good flexibility, plasticity, heat-resistance, heat dissipation, pressure, and abrasion resistance. Moreover, it is of good luster and smooth surface.

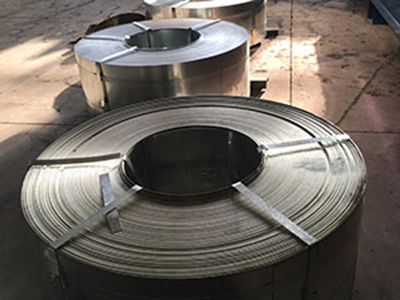

In order to satisfy the customers' demands, we use a hot-dipped steel plate or hot-dipped Al-Zn coated plate as the raw material, combined with a suitable and economical paint. With imported production lines, we are able to produce adequate amounts of steel plates to satisfy large scale market demands.
Our color coated steel comes from pollution-free materials and undergo an environment-friendly process. It is widely used for packing, optical and decorative purposes.
Yingkou Bohai Colored Steel Sheet Forming Equipment Co., Ltd. is a color coated steel manufacturer in China which has the capacity to produce roll forming machines, BH-span Arch Sheet Building Machines, BH-span Arch Sheet Project, steel strip forming machines, among other machines. Due to their stable performance and competitive prices, our products have gained worldwide popularity especially in countries like Ukraine, Mexico, Romania, India, UAE, Afghanistan, Iraq, Angola, Guinea and more. Welcome to contact us for more information!
Technical Specifications:
| Model | TS280GD | ||
| Thickness of sheet | 0.8mm~1.3mm | ||
| Width of sheet | 914mm | ||
| Chemical Composition | C | ×102 | 7 |
| Mn | ×102 | 87~89 | |
| P | ×103 | 13~14 | |
| S | ×103 | 6 | |
| Tensile Test | Y.S. | MPa | 461~470 (Y.S.=Yield Strengthen) |
| T.S. | 501~523 (T.S.= Tensile Strengthen) | ||
| EL. | 18%~22% (EL.= Elongation) | ||
| Coat thickness | 22~25um | ||
| Available Color | Blue, White, Sliver, Green, Red | ||
