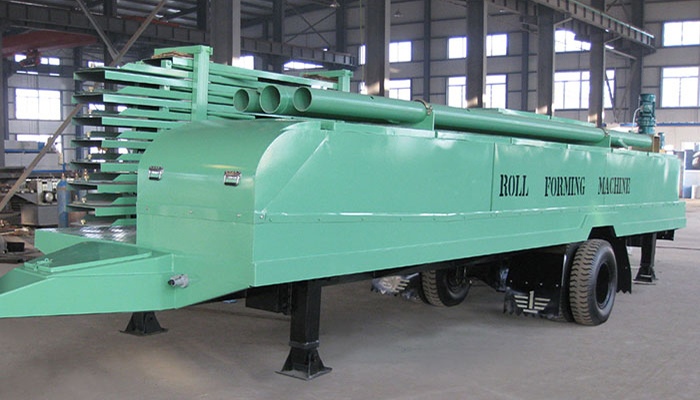

BH-span Arch Sheet Building Machine
BH-span Arch Sheet Building Machine
Yingkou Bohai Colored Steel Sheet Forming equipment Co., Ltd. is an experienced BH-span Arch Sheet Building Machine manufacturer in Yingkou city, Liaoning province, China. We have 9 years of experience and have the capacity to produce other roll forming machines including BH-span Arch Sheet Project, steel strip forming machines, roof sheet forming machines, etc. Our products are exported to Mexico, UAE, Romania, Ukraine, Angola and many more countries. Our 9 years of experience in this industry have given us the necessary knowledge required for the production of durable and productive BH-span Arch Sheet forming machines at low prices. Please contact us for more information!
Technical Specification:
| Size | 10400mm×2400mm×2200mm | |
| Total weight | About 10000KG | |
| Controlling system | PLC (Panasonic) | |
| Cutting material | T10 | |
| Largest span | ≤40m | |
| Main motor power | 5.5KW | |
| Bending power | 3.0KW+1.5KW | |
| Cutting power | 3.0KW | |
| Sewing power | 1.1KW+1.1KW | |
| Width of the panel | 914mm-400mm | |
| Thickness of the panel | 0.8-1.5mm | |
| Working speed | Straight sheet | 15m/min |
| Arch sheet | 13m/min | |
| Sewing | 16m/min | |
| Ship container | 40'GP ×1 | |
