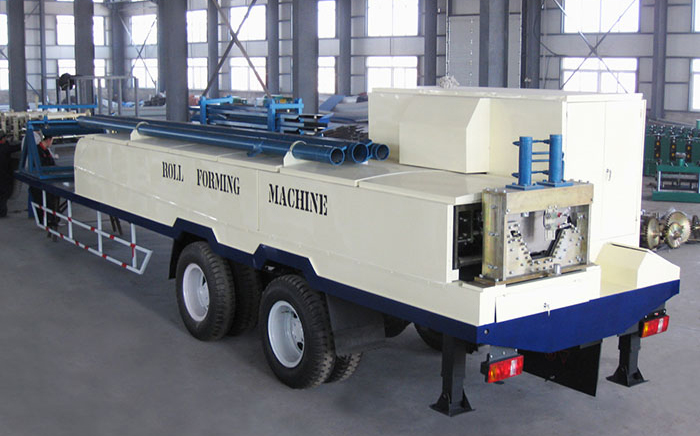

BH-span Arch Sheet Building Machine

BH-span Arch Sheet Building Machine

Bohai is a China roll forming machine manufacturer who offers BH-span Arch Sheet Building Machines, roof roll forming machines, Color Coated Steel and more roll forming machines. Owing to its wide range of application and high quality, our BH-span Arch Sheet Building Machine has gained great popularity among our customers in countries like Ukraine, India, Romania, Iraq and more. Please do not hesitate to contact us for our BH-span Arch Sheet Building Machine.

Technical Specification:

Size		8900mm × 2250mm × 2300mm
Total weight		about 11000KG
Material of cutting blade		Cr12mov
Controlling system		PLC (Panasonic)
Proper span		≤40m
Main motor power		15.7KW
Forming power		7.5kw
Bending power		3.0kw
Cutting power		3.0kw
Conical power		2.2kw
Working Speed	Straight sheet	15m/min
	Arch sheet	13m/min
	Sewing	16m/min
Step of rollers		14 steps
Feeding width		914mm

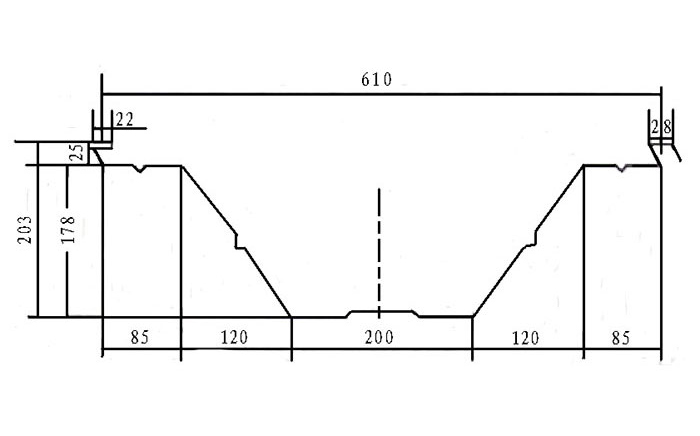

Effective width		610mm
Sheet operating factor		66%
Thickness of the coil		0.6-1.5mm
Material of rollers		45# steel, quenched
Material of roller shafts		45# steel, quenched
Electric standard		380V / 50 HZ / 3 PHASE
Type of cutting		Roll-formed and length-set cutting
Ship container		40'HQ × 1
