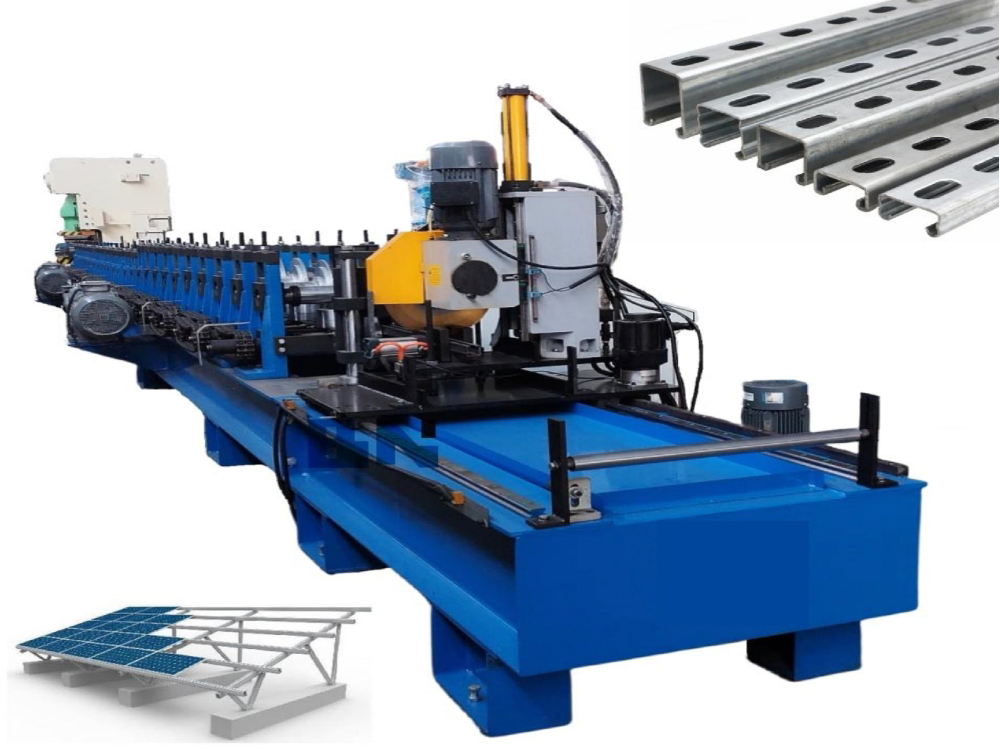

Solar Panel Support Frame Roll Forming Machine

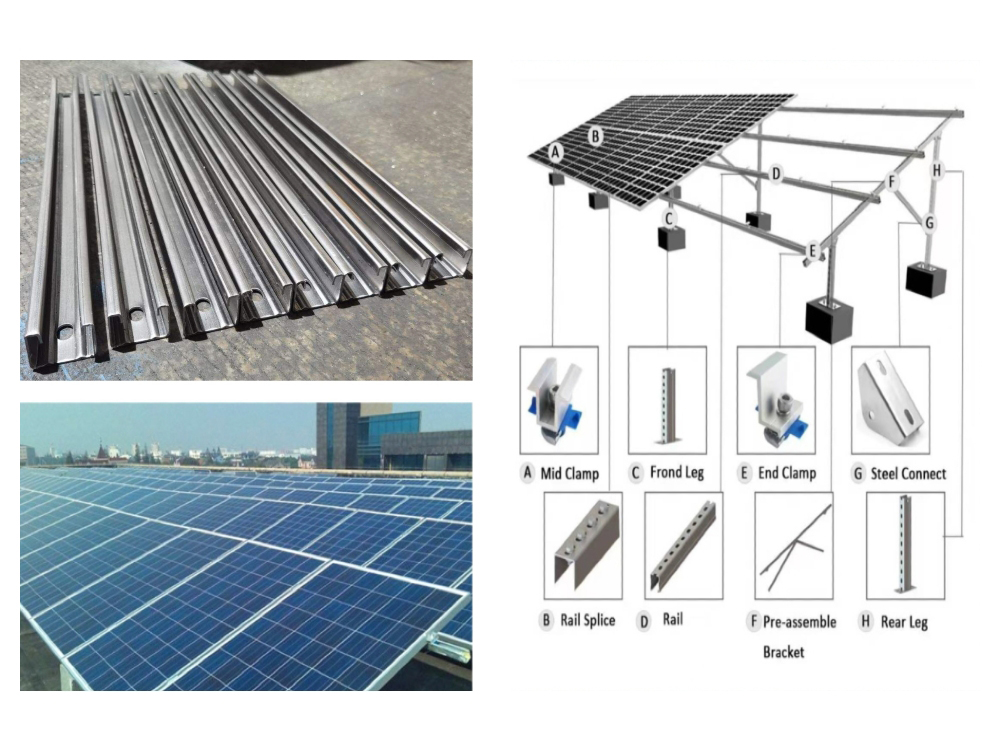

The solar panel support frame roll forming machine is developed for producing solar mounting profiles used in large ground-mounted PV plants, distributed solar systems, and overseas EPC solar projects. It offers efficient, precise, flexible, and energy-conscious production for solar bracket manufacturing.
The forming machine supports automated production from coil feeding to forming and cutting. Bohai develops three working-speed configurations for this equipment, allowing customers to select a suitable setup according to project scale and production requirements.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1-2.5mm (customizable) |
| Feeding Width | 80-200mm (customizable) |
| Effective Width | 41mm (customizable) |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 6-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Punching Device | |

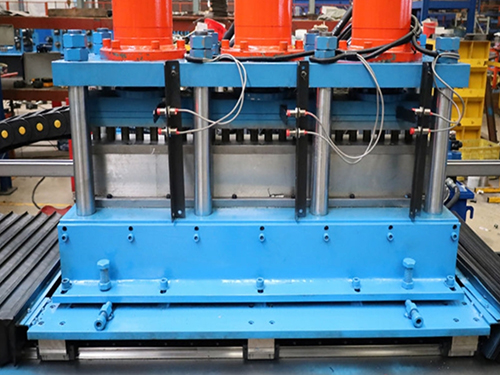

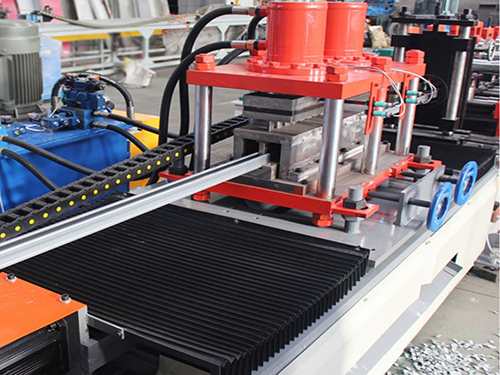

| Punching Type | Press punching/hydraulic punching (optional) |
| Punching Die Configurations | According to the drawings (customizable) |
| Forming Machine | |
| Main Shaft | Diameter: Ø80mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |
| Forming Stations | 20-30 Stations |
| Forming Machine Motor Power | 15-22kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0kW-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

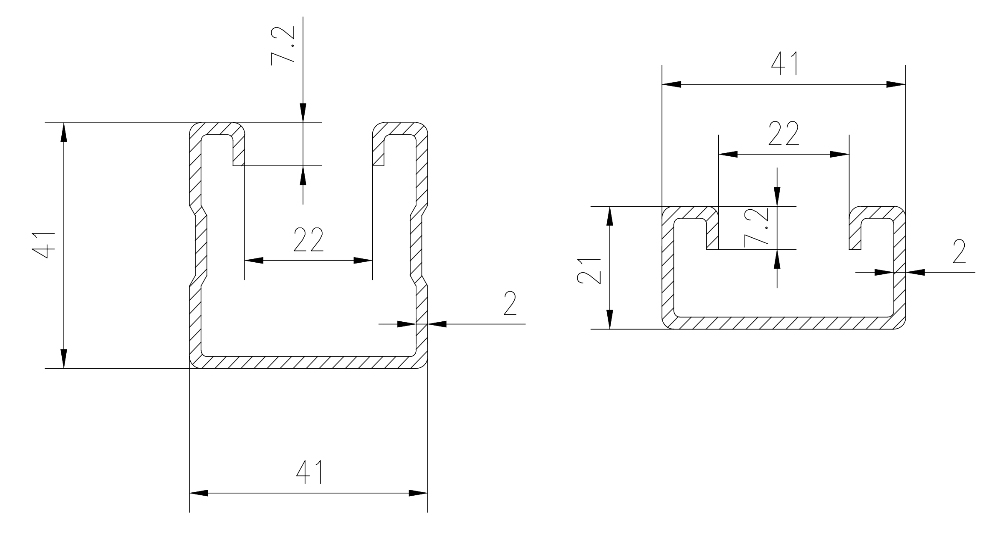

(choose a standard profile, or provide your own drawing)
Process
Decoiling →Material Feeding & Guiding → Punching → Roll Forming → Cutting → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 5t Manual Uncoiler | 1 Set |
| 2 | Punching Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
