Steel Scaffold Plank Roll Forming Machine

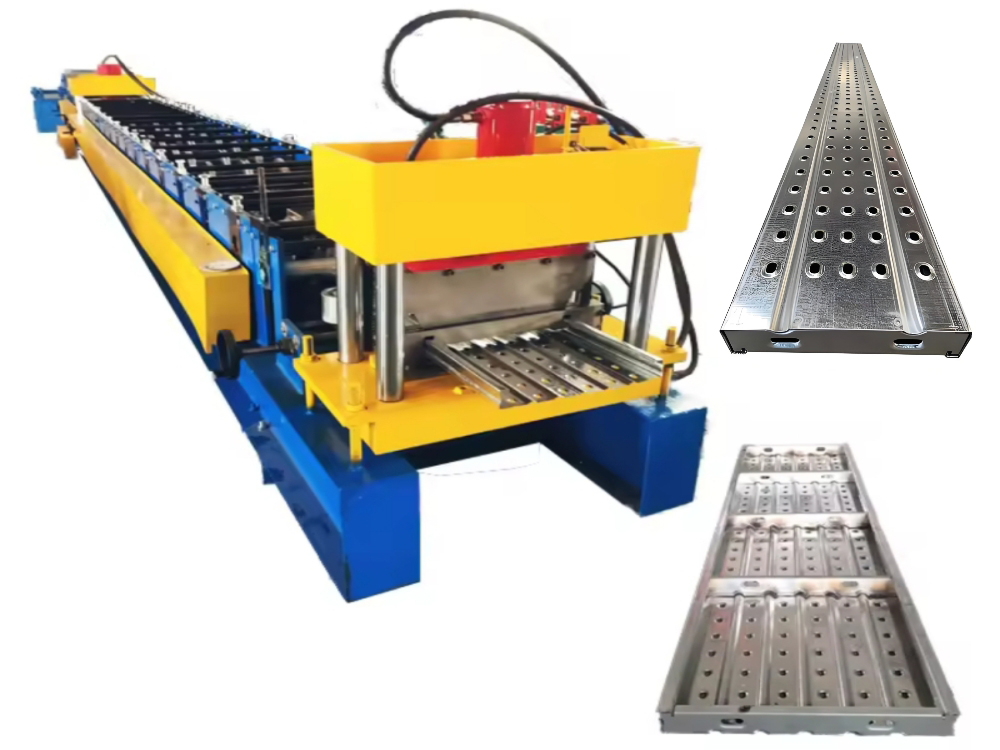

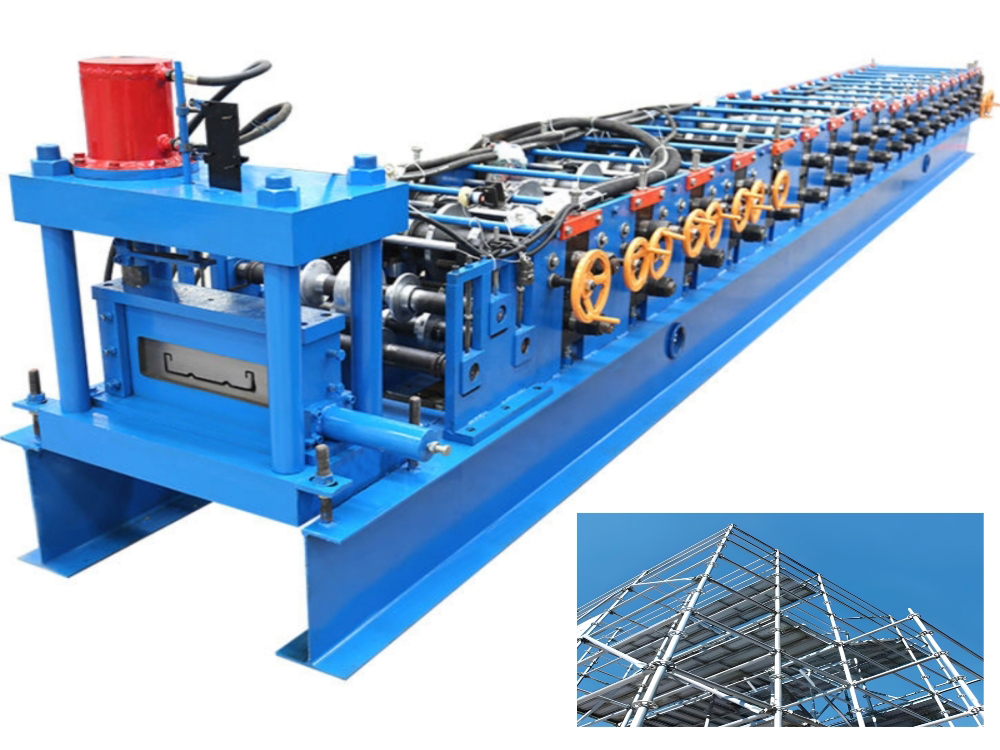

The steel scaffold plank roll forming machine is designed for automated production of steel scaffold planks in different specifications. The line integrates decoiling, leveling, punching, roll forming, measuring, and cutting, helping manufacturers produce consistent scaffold boards with less manual handling.

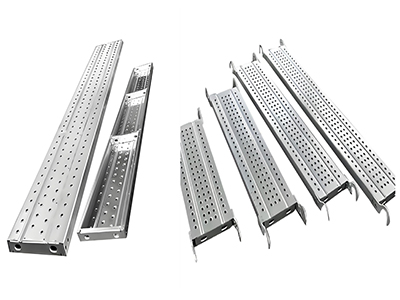

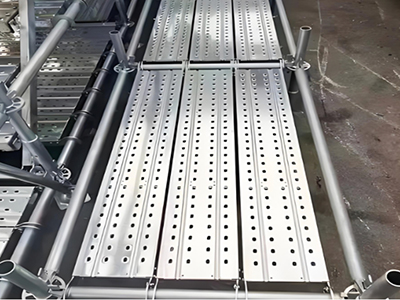

The finished steel planks are formed for high load capacity and resistance to bending or deformation. They are widely used as working platforms in high-rise construction, bridge engineering, tunnel projects, and other jobsite environments where safety, strength, and repeatable production quality are critical.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1.2-1.8mm (customizable) |
| Feeding Width | 400mm (customizable) |
| Effective Width | 250mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 7t-9T |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Leveling & Punching Device | |
| Punching Type | Press punching/hydraulic punching (optional) |
| Punching Mold Material | Cr12 (quenched to HRC 58-60) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø80mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |

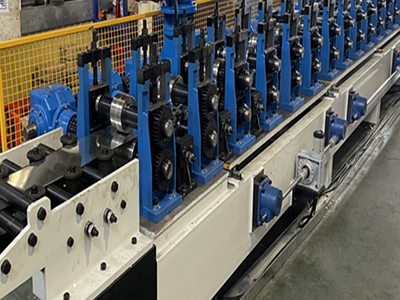

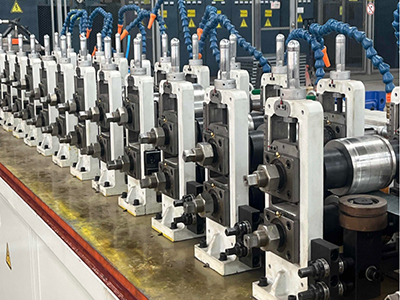

| Forming Stations | 12-20 stations |
| Forming Machine Motor Power | 11-22kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (5.5-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |
Decoiling → Leveling and Punching → Material Feeding → Roll Forming → Cutting → Finished Product Collection
Configurations| No. | Equipment | Quantity |
| 1 | 5t Manual Uncoiler | 1 Set |
| 2 | Leveling and Punching Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
