Storage Shelf Bracing Roll Forming Machine

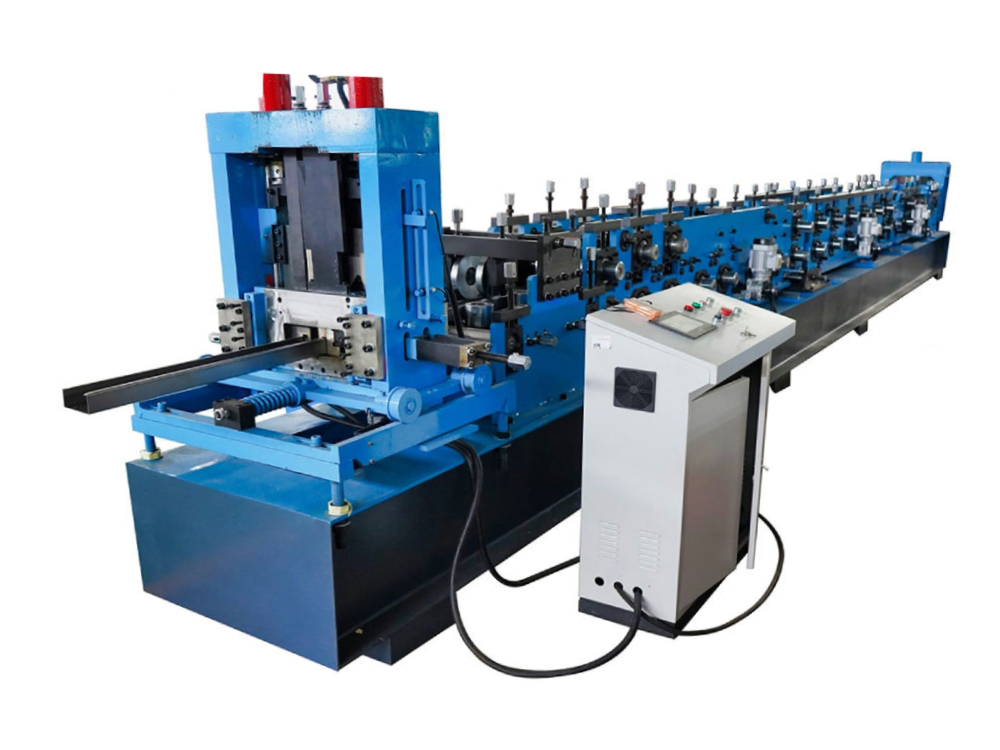

Storage shelf bracing roll forming machine is designed for producing bracing profiles used in storage shelf systems, including diagonal and horizontal bracing members. The line supports carbon steel, galvanized coil, stainless steel, Q345, Q460, and other high-strength steel materials.

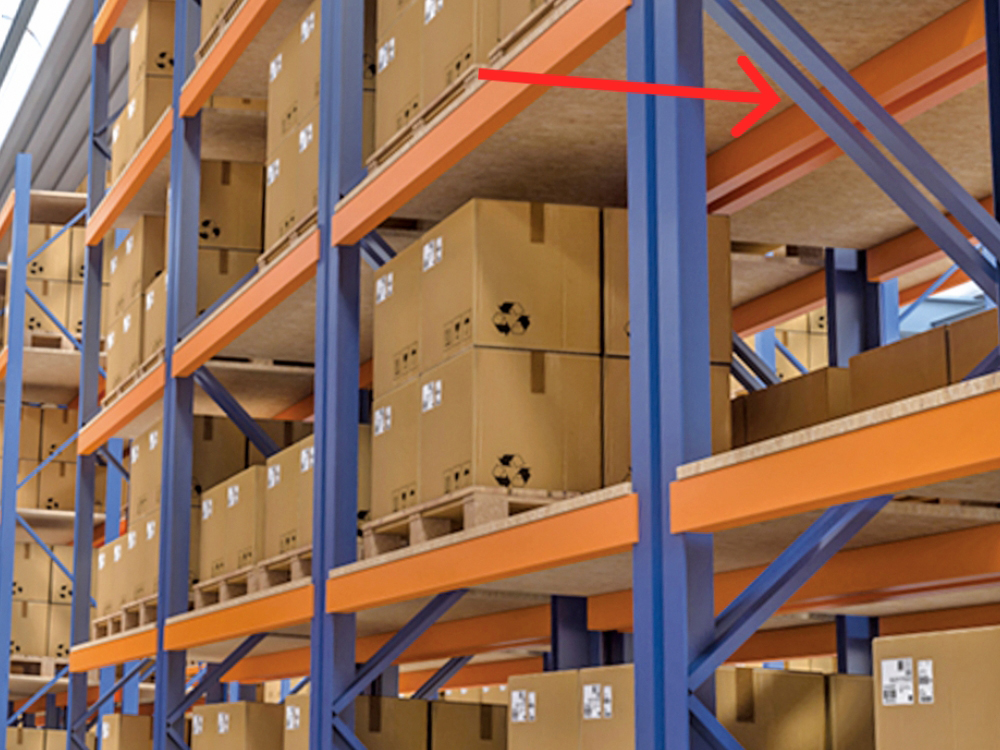

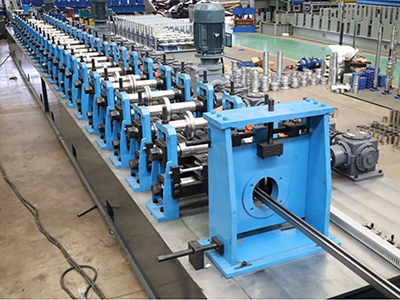

Through cold roll forming, the machine forms closed-section or C-shaped reinforced profiles that improve tensile and shear resistance. The finished bracing members help strengthen the lateral stability of storage shelves and reduce side deformation under full-load conditions.

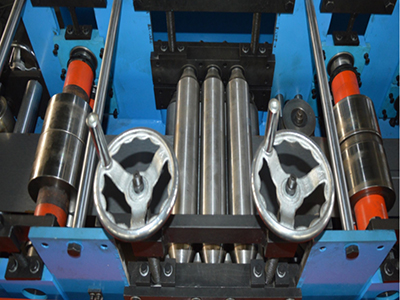

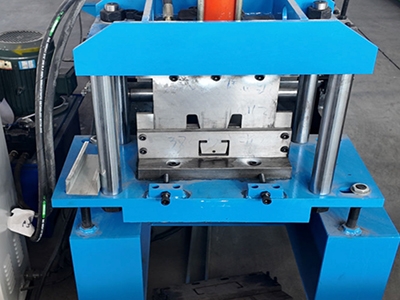

Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1.2-2.0mm (customizable) |
| Feeding Width | 100mm (customizable) |
| Effective Width | 40-50mm (customizable) |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 5t-7t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø70mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |
| Forming Stations | 10-16 stations |
| Forming Machine Motor Power | 5.0-11kW |
| Forming Speed | 8-20m/min |
| Punching Device | |
| Punching Type | Hydraulic Punching |
| Punching System | Servo Motor Tracking Punching |
| Cutting Device | |
| Cutting Method | Automatic hydraulic tracking cutting (5.5-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |
Decoiling → Material Feeding & Guiding → Roll Forming → Hydraulic Track Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 5t Uncoiler | 1 Set |
| 2 | Main Roll Forming Machine | 1 Set |
| 3 | Punching Device | 1 Set |
| 4 | Hydraulic Track Cutting | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
