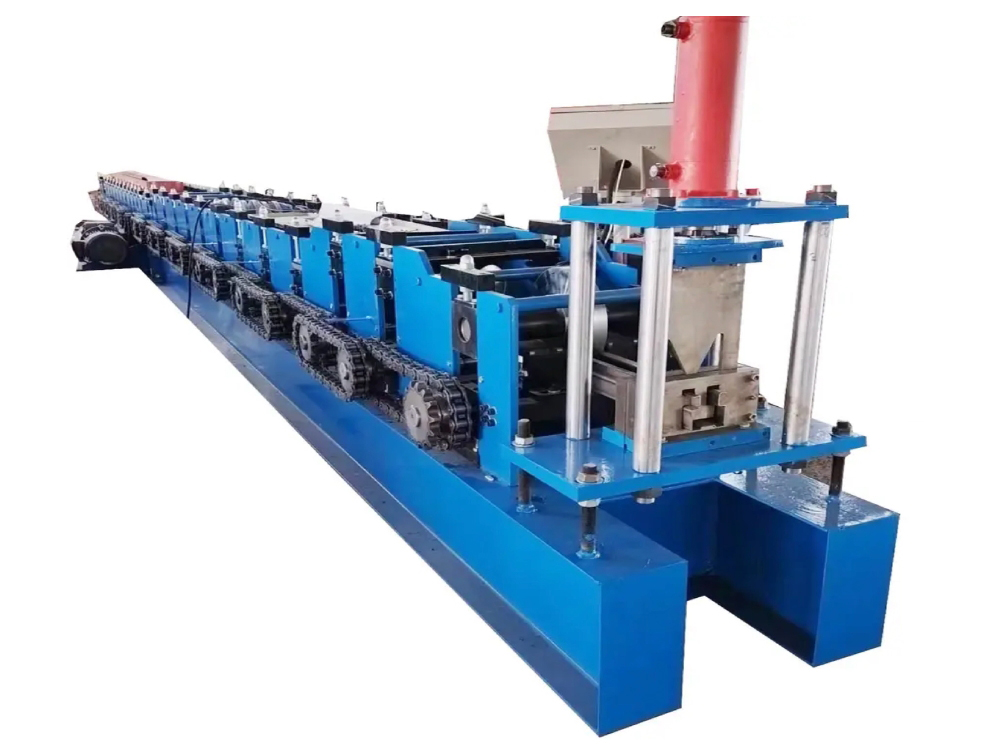

Storage Shelf Upright Roll Forming Machine

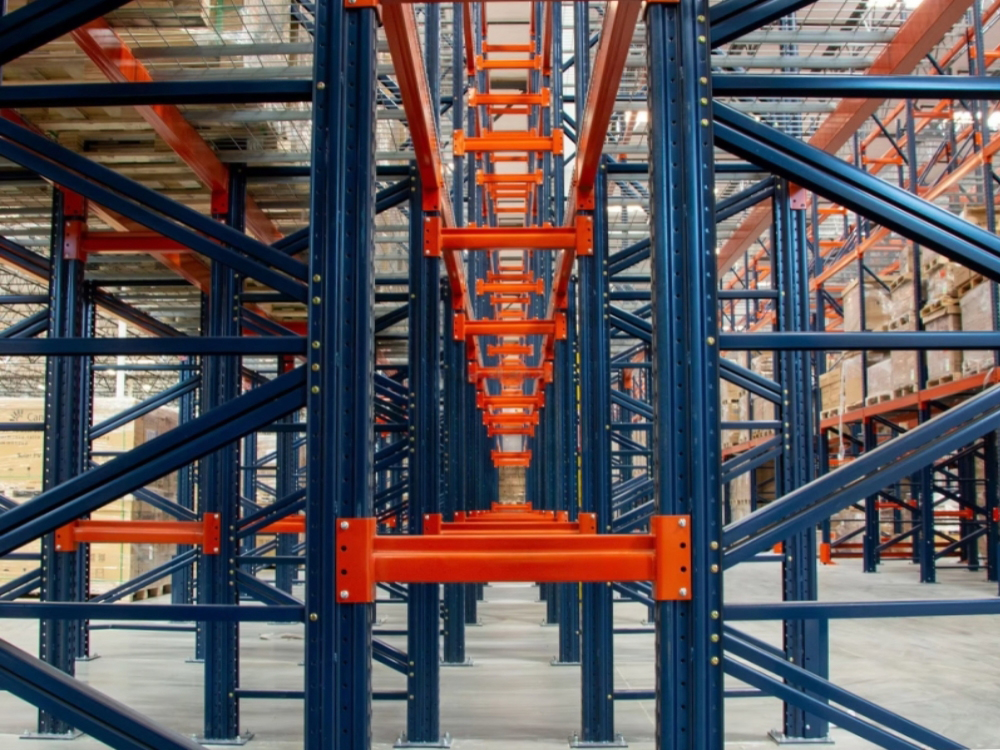

Storage shelf upright roll forming machine is designed for continuous production of shelf upright columns. The line integrates decoiling, leveling, punching, roll forming, and cutting, helping manufacturers produce upright profiles for warehouse shelving and storage systems with automated operation.
Bohai’s upright roll forming line can be configured for cold-rolled steel, hot-rolled steel, galvanized strip, stainless steel, aluminum alloy, Q460 high-strength steel, and other materials. Material thickness and line speed can be selected according to production requirements, with a configurable thickness range of 0.2–16 mm and a production speed of 15–40 m/min.
The forming machine features closed-loop detection to control hole position accuracy, cut-to-length accuracy, and forming deviation, helping ensure upright verticality and load-bearing performance.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1-3mm (customizable) |
| Feeding Width | 100-400mm (customizable) |
| Effective Width | 80-140mm/60-150mm (customizable) |
| Machine Dimensions & PLC | |
| Profile Types | One machine supports multiple profile types via manual or automatic sleeve changing |
| Machine Dimensions | Approx. 20×1.6×1.4m |
| Machine Weight | 8t-15t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |

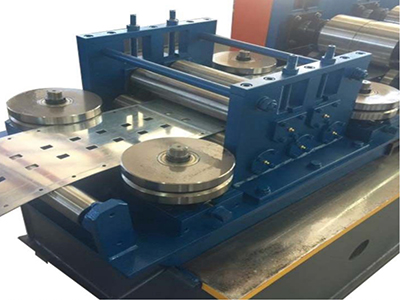

| Leveling Device | |
| Leveling Rollers | 7 Step. Up Three, Down Four |
| Roller Material | Diameter: Ø90mm Material: 45# steel (finish turning) |
| Motor Power | 5.5kW |
| Punching Device | |
| Punching Type | 80t Press Machine |
| Mold Material | Cr12MoV (quenched to HRC 58-62) |
| Punching Mold | 2 sets (customizable according to profile drawings) |
| Motor Power | Servo Motor 5.5kW |

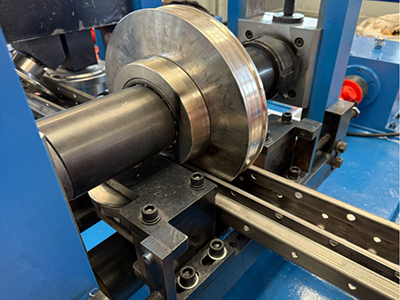

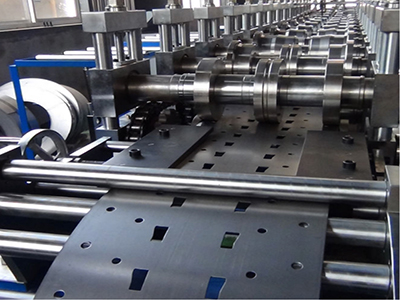

| Forming Machine | |
| Main Shaft Material | Ø90mm,40Cr (quenching and tempering) |
| Roller Material | Cr12 (quenched to HRC 58-62) |
| Forming Stations | 20-30 stations |
| Forming Machine Motor Power | 30-50kW |
| Forming Speed | 8-20m/min |
| Cutting Device | |
| Cutting Method | 11-30kW Fully Automatic Servo Hydraulic Tracking Cutting |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

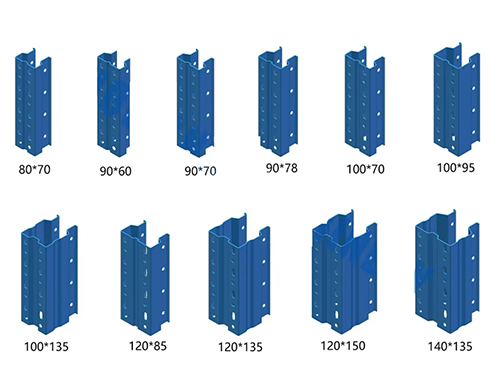

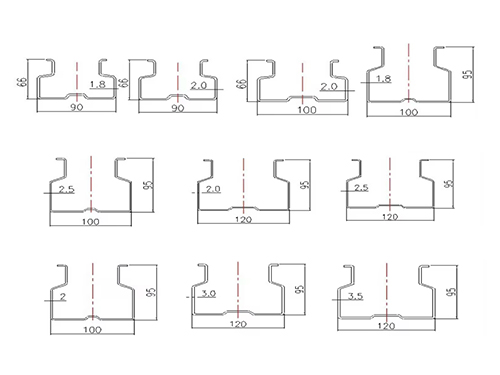

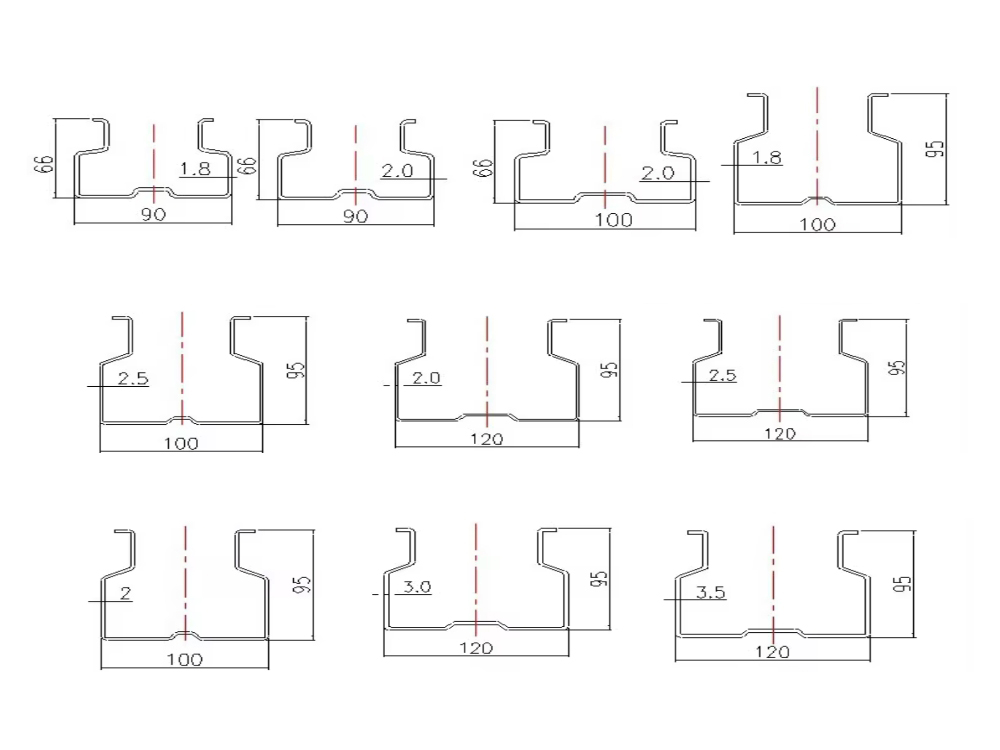

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling → Leveling Servo Feeding and Punching → Entry Guiding → Roll Forming → Tracking Hydraulic Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 5t Uncoiling | 1 Set |
| 2 | Leveling Machine | 1 Set |
| 3 | Servo Feeding Machine And Punch Press | 1 Set |
| 4 | Main Roll Forming Machine | 1 Set |
| 5 | Tracking Hydraulic Cutting Machine | 1 Set |
| 6 | Hydraulic Station | 1 Set |
| 7 | Controlling System (including Cabinet) | 1 Set |
| 8 | Run-out Table | 1 Set |
