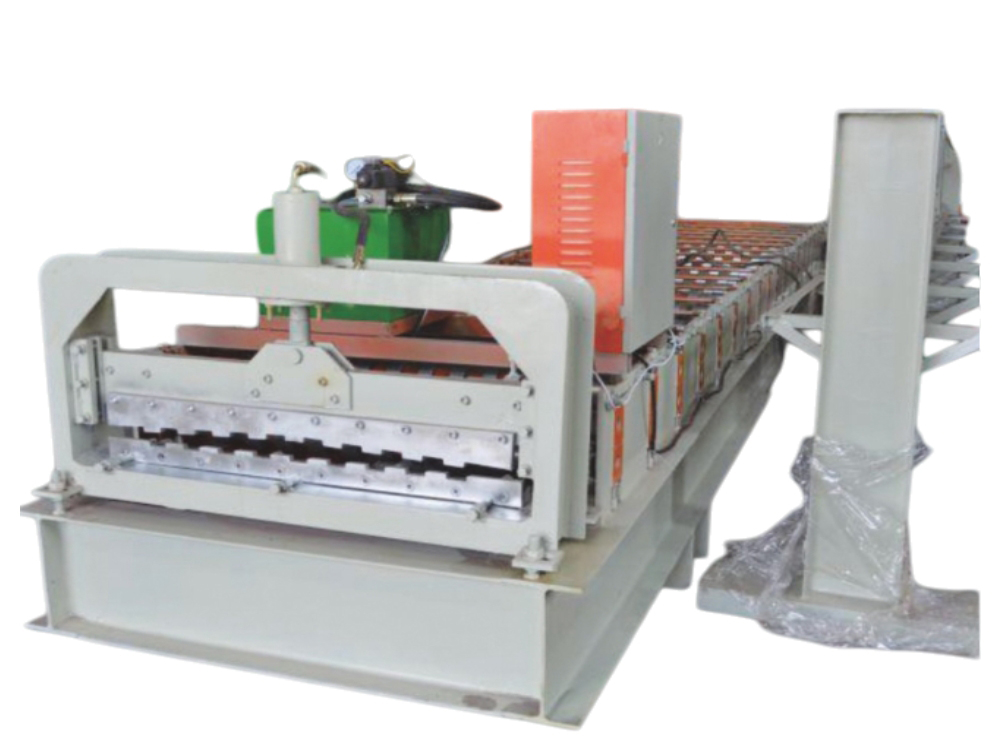

Australian-Style Roller Shutter Door Roll Forming Machine

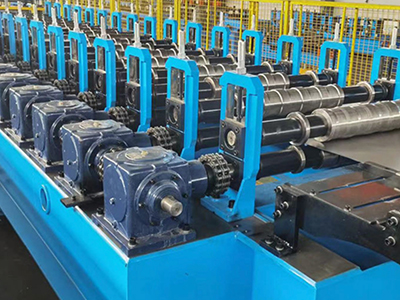

The Australian-style roller shutter door roll forming machine combines precision cold roll forming with automatic control. The line is equipped with 16–24 high-precision, wear-resistant, and corrosion-resistant forming stations, and can process 0.4–1.5 mm high-strength galvanized steel or pre-painted galvalume steel. A full-servo digital measuring system supports accurate cutting and flexible high-volume production.

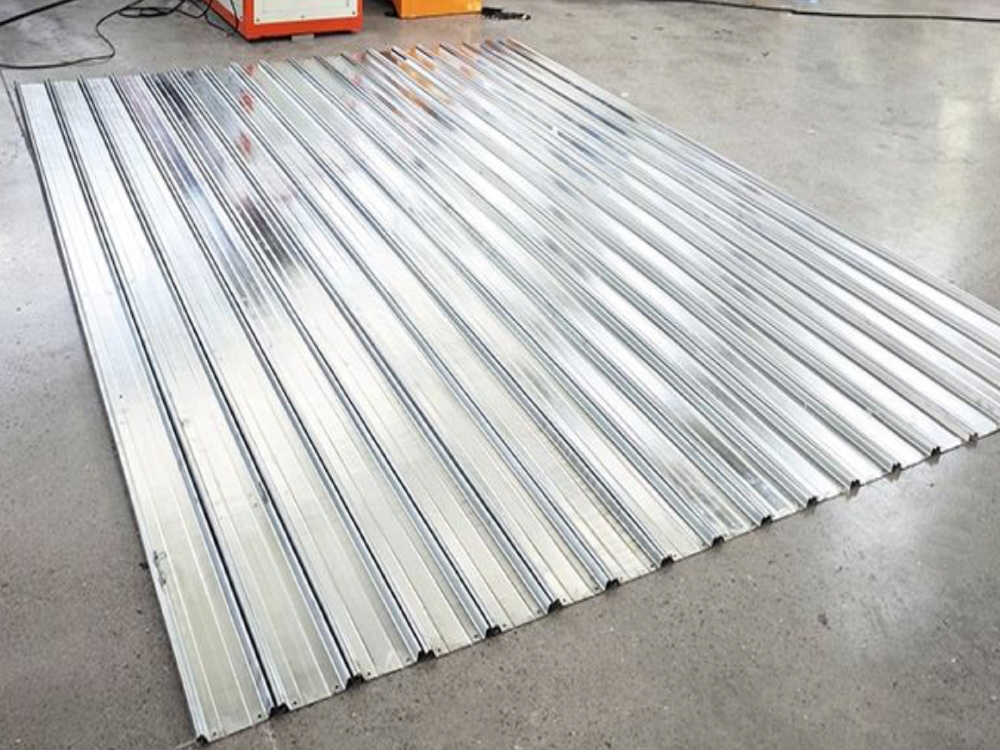

The finished Australian-style shutter panels feature deep corrugations and reinforcing ribs designed to fit C-type guide rails. These panels provide wind resistance, corrosion resistance, and anti-pry performance for retail shops, modern garages, and industrial buildings.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.3-0.6mm (customizable) |
| Feeding Width | 1000-1250mm (customizable) |
| Effective Width | 840-1000mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 5t-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø70mm Material: steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |

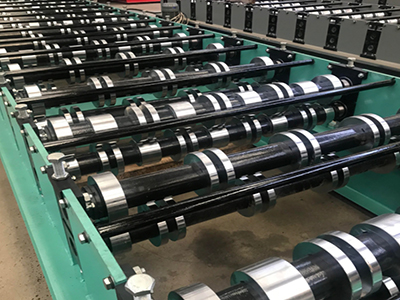

| Forming Stations | 14-24 stations |
| Forming Machine Motor Power | 3.0kW-11kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0kW-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

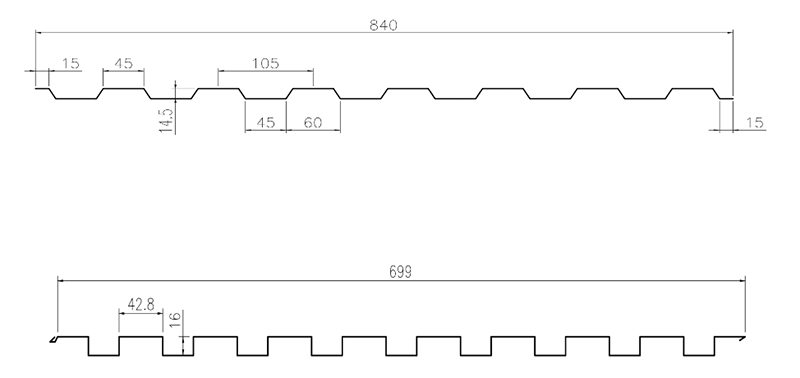

(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Leveling → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 5t Manual Uncoiler | 1 Set |
| 2 | Main Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Controlling System (including Cabinet) | 1 Set |
| 6 | Run-out Table | 1 Set |
