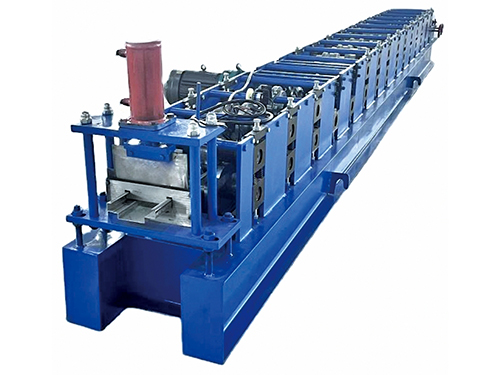

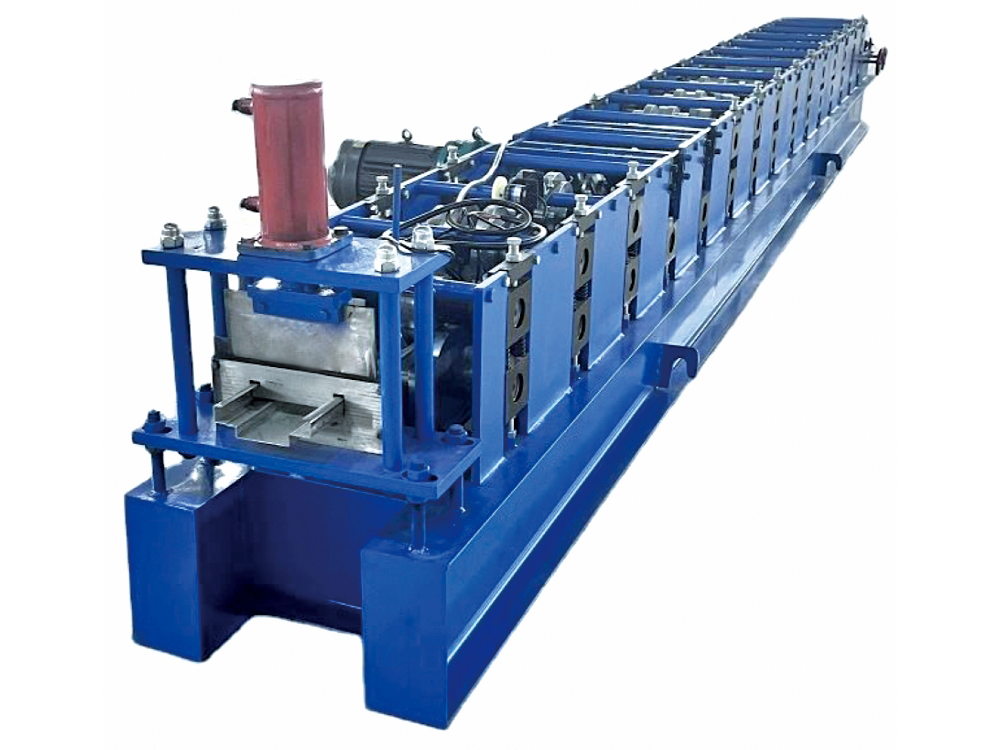

Door Frame Roll Forming Machine
Bohai’s door frame roll forming machine is engineered for steel door frame profiles in multiple specifications. Bohai offers different machine models for door frame manufacturing, supporting sheet thicknesses of 1.0–2.0 mm and 16–28 forming stations.
One machine can be configured to produce multiple profile models. A servo cut-to-length system keeps length deviation within ±1 mm, making the line suitable for batch production by door and window manufacturers. The machine integrates decoiling, leveling, roll forming, punching, measuring, cutting, and stacking, with production speed reaching 12–18 m/min. Non-standard profile customization is also available.

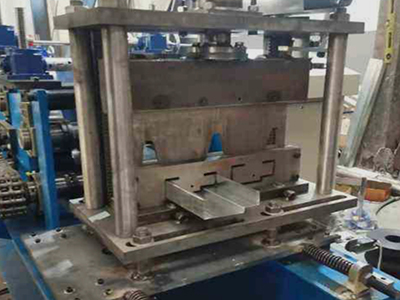

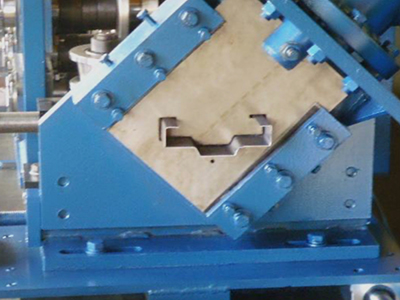

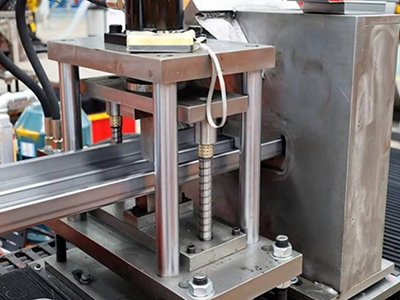

Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.3-0.8mm (customizable) |
| Feeding Width | 200-500mm (customizable) |
| Effective Width | 100-250mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 3t-5t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Main Shaft Material | Diameter: Ø70mm Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 15-25 stations |
| Forming Machine Motor Power | 7.5kW-15kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (4.0kW-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

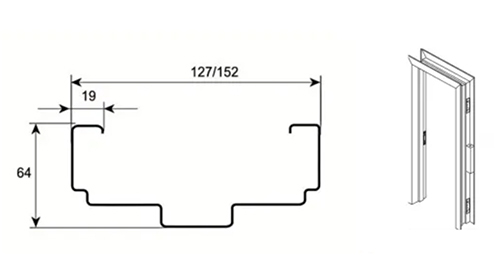

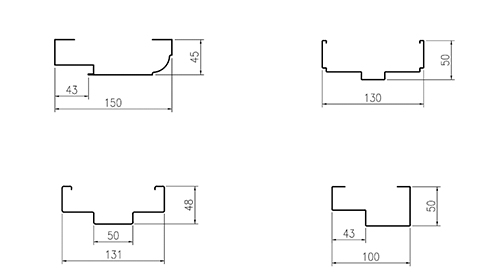

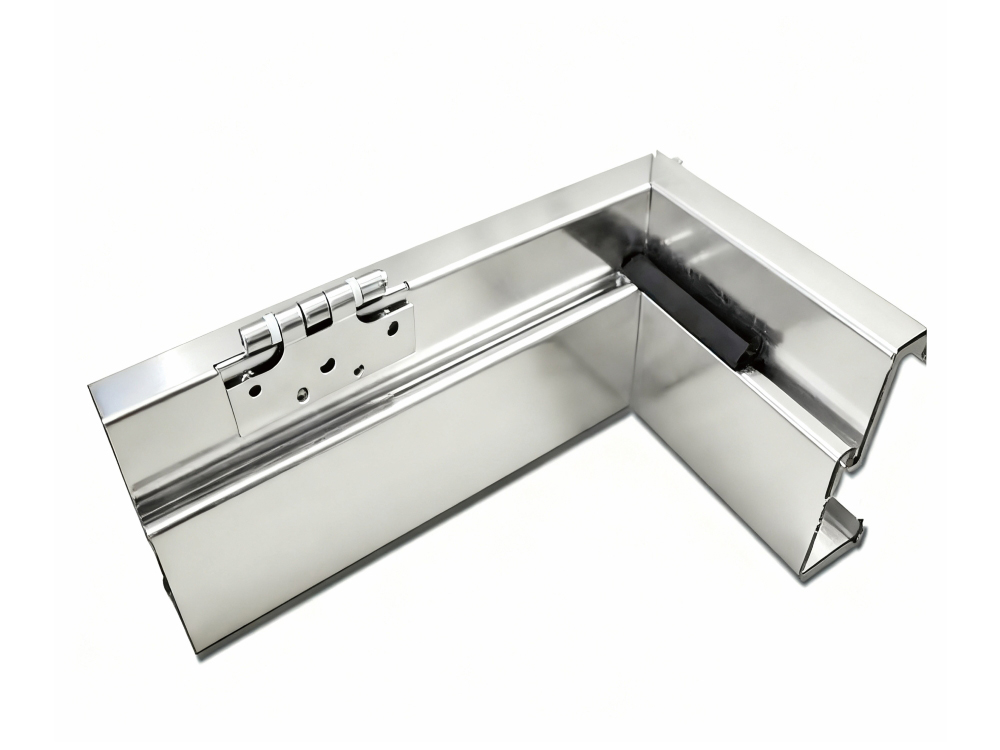

(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 3t Uncoiler | 1 Set |
| 2 | Main Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Controlling System (including Cabinet) | 1 Set |
| 6 | Run-out Table | 1 Set |
