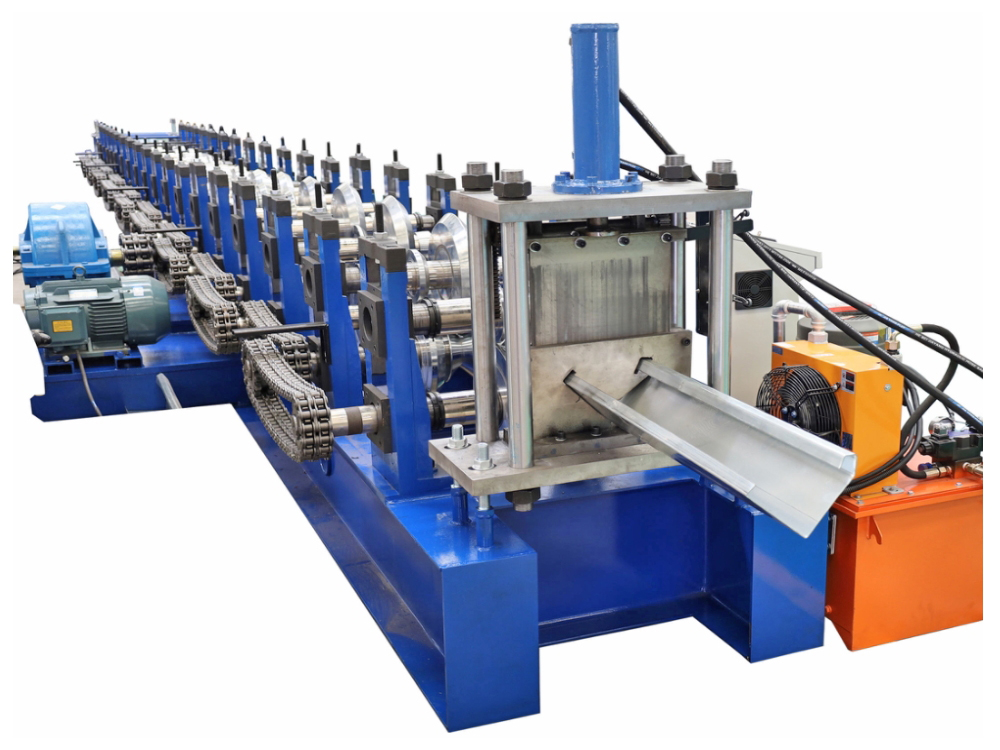

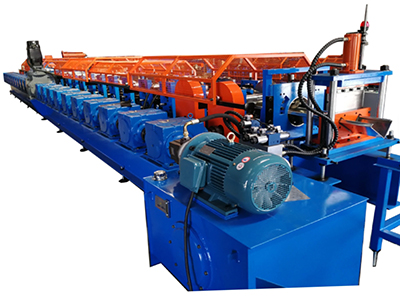

Shipping Container Beam Roll Forming Machine
The shipping container beam roll forming machine is developed for producing structural beams used in container manufacturing, including main beams, side beams, and other load-bearing profiles. Through cold roll forming, the line processes steel coils into C-shaped, H-shaped, or custom-section beams with stable dimensional consistency.

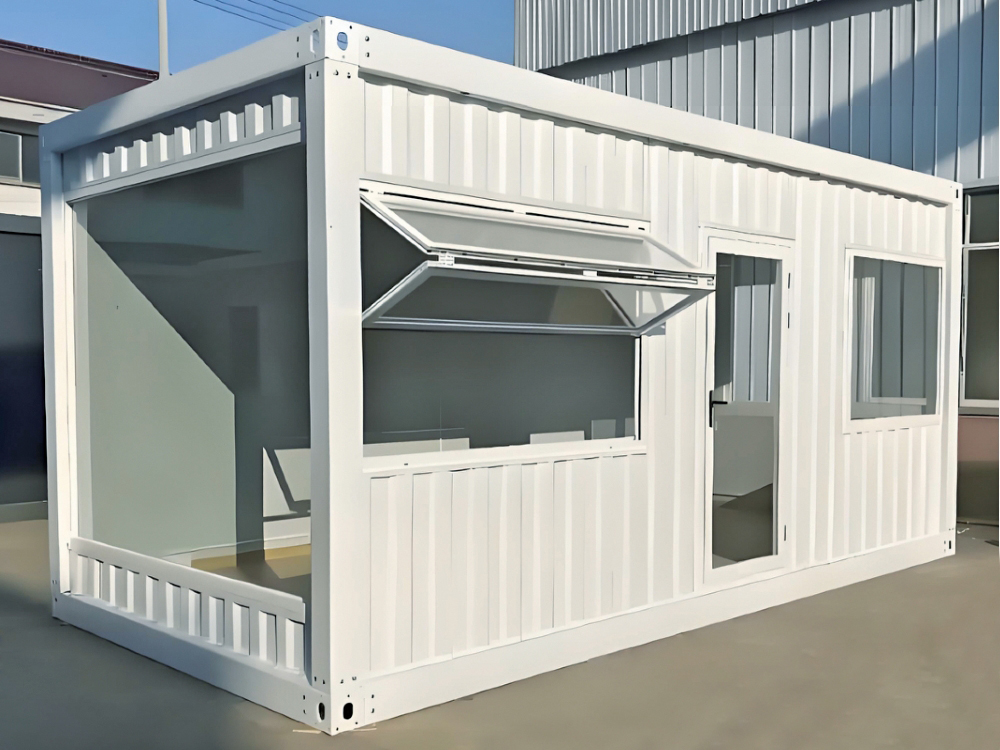

The forming machine can be configured for 20 ft containers, 40 ft containers, high-cube containers, open-top containers, and other container types. Selected configurations can also be adapted for modular house beams, special vehicle frames, and other non-standard structural profiles.

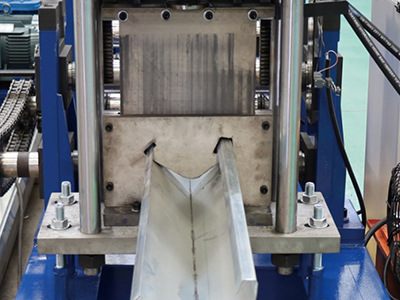

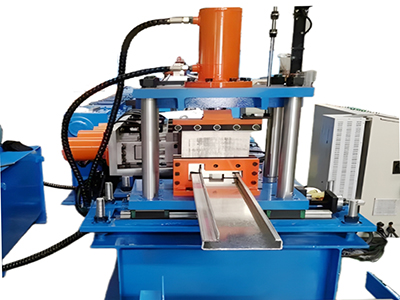

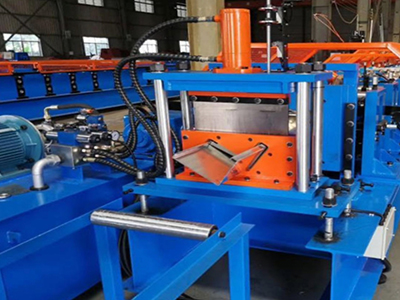

Specifications| Raw Material | |
| Applicable Materials | Weathering Steel CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 2-5mm (customizable) |
| Feeding Width | 200-500mm (customizable) |
| Effective Width | 150-200mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 6-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Leveling Roller | Diameter: Ø115mm Material: 45# steel (5-7 roller leveling) |
| Main Shaft Material | Diameter: Ø115mm Material: steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |
| Forming Stations | 12-18 stations |
| Forming Machine Motor Power | 15-30kW (with cycloidal gear reducer) |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (4.0-11kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

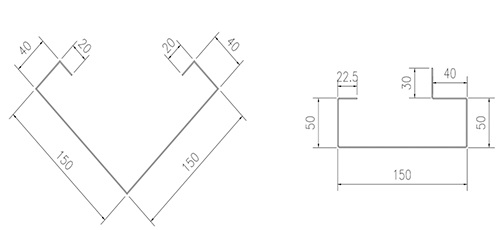

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Leveling → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 10t Uncoiler | 1 Set |
| 2 | Leveling Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
