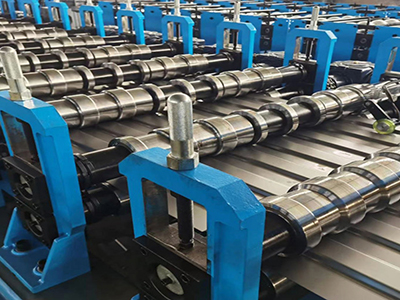

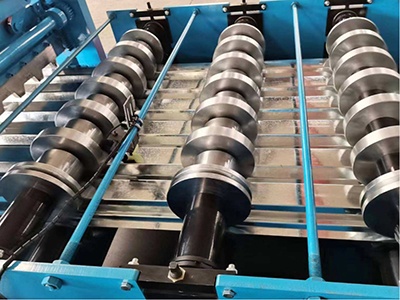

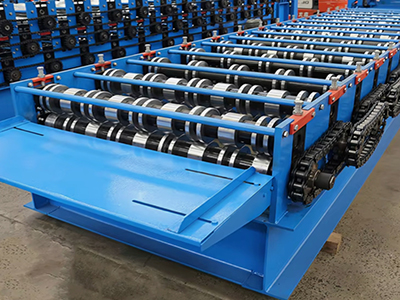

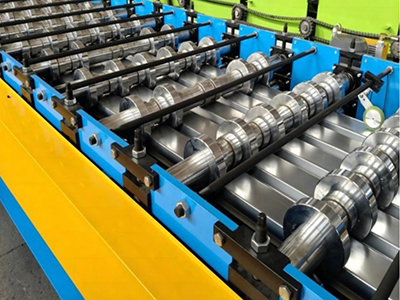

Truck Body Panel Roll Forming Machine

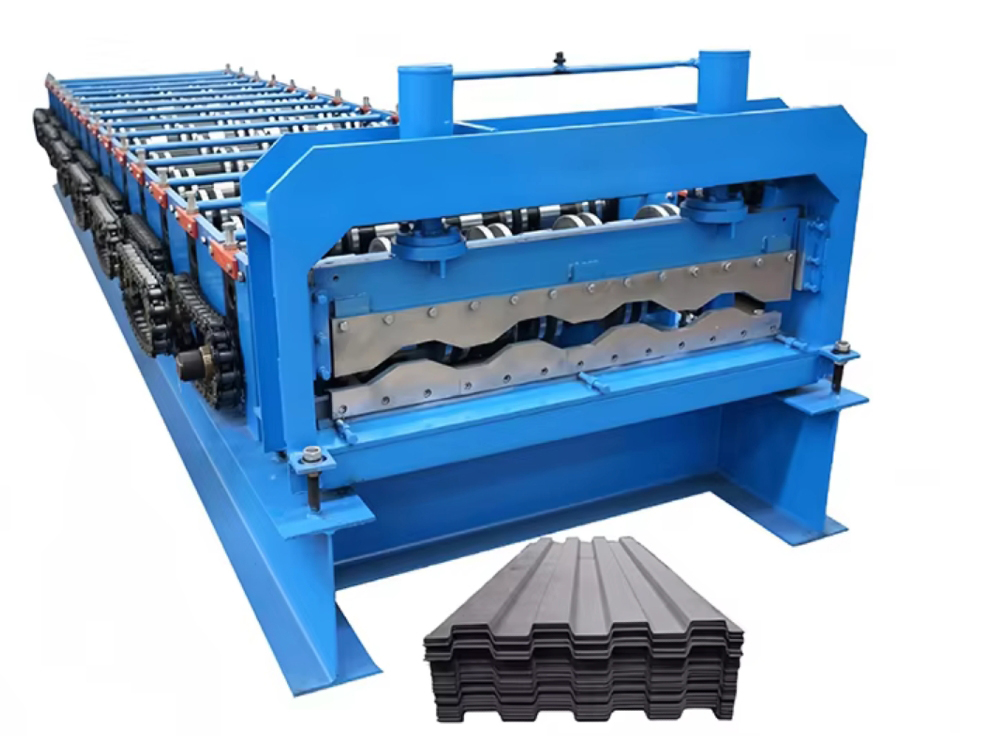

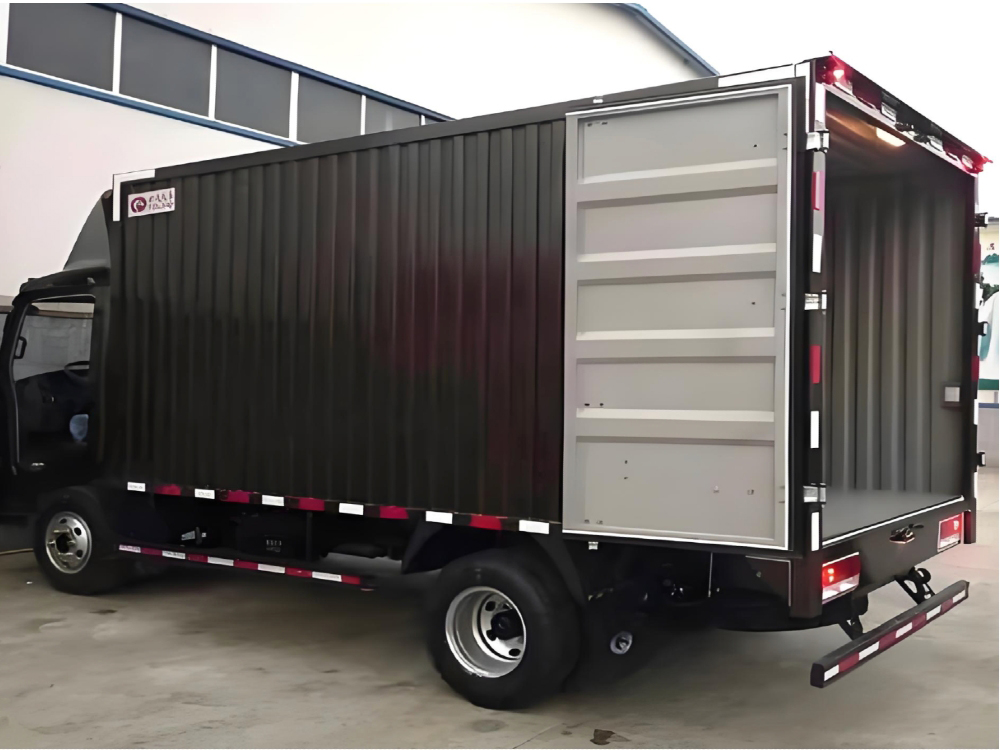

The truck body panel roll forming machine is specially designed to produce standard logistics truck side wall panels, as well as roof panels for transport compartments. It supports sheet thicknesses of 1.2–3.0 mm and is equipped with 20–28 forming stations to ensure stable panel forming. The hydraulic cut-to-length system helps keep the panel surface flat, accurate, and free from deformation.
For roof panel production, the machine can be equipped with dedicated leveling and curved roller sets to form uniform corrugations with strong compression resistance. Optional automatic punching can be integrated to preset drainage holes, improving sealing performance and structural strength. Non-standard profile customization is also available to meet different truck body production requirements.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) Al (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) HRGI (hot rolled galvanized steel) |
| Material Thickness | 1-3mm (customizable) |
| Feeding Width | 1200-1250mm (customizable) |
| Effective Width | 1000-1200mm (customizable). |
| Machine Dimensions & PLC | |
| Machine Dimensions | Approx. 8×1.6×1.4m |
| Machine Weight | 6-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Forming Machine | |
| Leveling Roller | Diameter: Ø115-125mm Material: 45# steel (5-7 roller leveling) |
| Main Shaft Material | Diameter: Ø115mm Material: 45# steel (finish turning) |
| Roller Material | GCr15 (annealing after forging, HRC 58-60, with chrome plated) |
| Forming Stations | 18-28 stations |
| Forming Machine Motor Power | 30-50kW (with cycloidal gear reducer) |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (11-30kW) |
| Cutting Blade Material | Cr12MoV (heat treatment, HRC 58-60) |

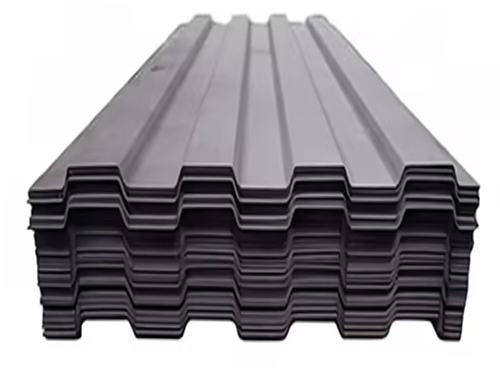

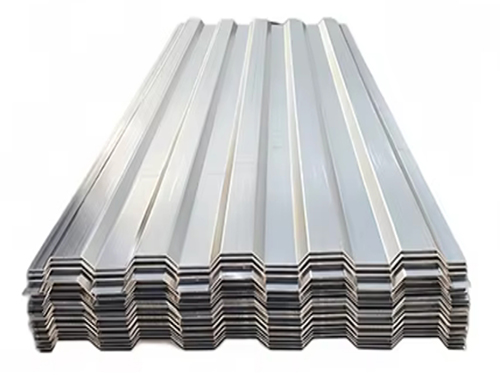

Profile Drawings
(choose a standard profile, or provide your own drawing)
Decoiling →Material Feeding & Guiding → Leveling → Roll Forming → Cutting → Finished Product Collection
Configuration| No. | Equipment | Quantity |
| 1 | 10t Uncoiler | 1 Set |
| 2 | Leveling Device | 1 Set |
| 3 | Main Roll Forming Machine | 1 Set |
| 4 | Cutting Device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Controlling System (including Cabinet) | 1 Set |
| 7 | Run-out Table | 1 Set |
